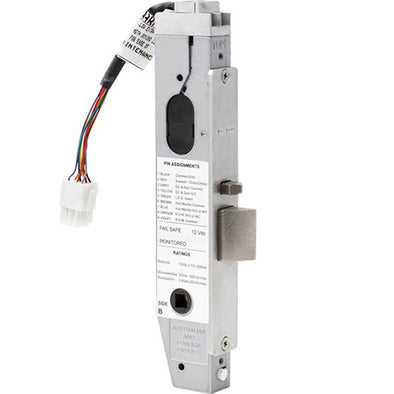

Voltage
Available in 12Vdc or 24Vdc
Current
12Vdc ± 5% 250mA (max)
24Vdc ± 5% 125mA (max)
LED Current
When LED's are fitted, add 15mA (max) to total current draw
Monitoring
Key override
Deadlatched and door closed
Request to exit
Hub/Deadlatch/Key override monitor: max ratings 500mA at 30Vdc
Door Status Monitor: max ratings 3W, 250mA (max) at 12Vdc,
125mA (max) at 24Vdc
Environment
Operational temperature range -20°c to + 60°c
Case/Cover
High purity zinc alloy construction
Backset
23mm standard. 25.4, 30 & 38 mm extended available
Latch bolts
15mm Stainless Steel construction
Door Clearance
3 - 6.5 mm
Door thickness
Standard applications 32 to 50mm
Extension kits available
Cylinder
Standard Lockwood oval shaped cylinders
Cabling
3.6 metre length of cable with 9 pin socket supplied with each lock.
Recommended cabling: 18AWG (0.82mm²) cable runs up to 30m
Furniture
Compatible with Lockwood series door furniture
Standard Finishes
Satin Chrome(SC) standard. Bright Chrome (CP) and Polished Brass(PB) finishes available
Note: For detailed electrical specifications, please refer to catalogue.
Specification Statement
The lock should be capable of operation on voltages of 12 or 24Vdc and have a current consumption not more than 250mA (max) @12Vdc and 125mA (max) @24Vdc. Monitored locks must be capable of monitoring the following functions: Key override, door position/reed switch& independent hub/ Request to exit. All monitoring outputs must have the ability to be wired independently. The lock must be capable of operating fail safe or fail secure, left or right hand, and have field configurable hub selection.
_________________________________________________________
Dimensions
