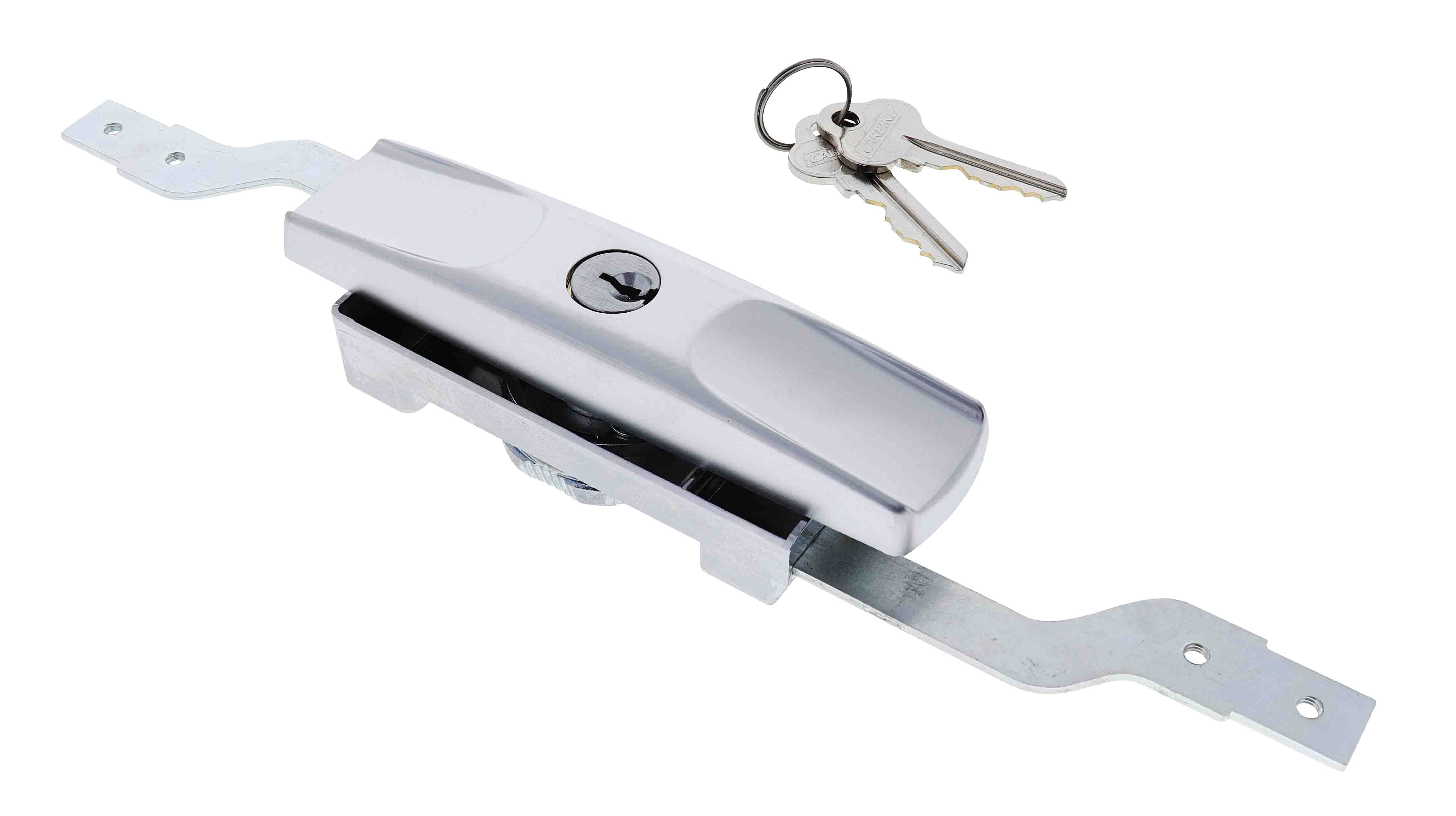

Lenlok Commercial Roller Door Locks
Lenlok Roller Door Locks have been completely redesigned from the ground up. With advancements in design, engineering, and manufacturing, this range is a must have for retrofit upgrades and for brand new installations.
With a far more modern and patented design, high quality metal and finishes, advanced features, and keying options, the Lenlok Roller Door Locks commercial range is the choice to use when a restricted key system is required. With an ergonomic design for easy, no-fuss installation, the commercial range of Lenlok roller door locks are available in one model with multiple variations.

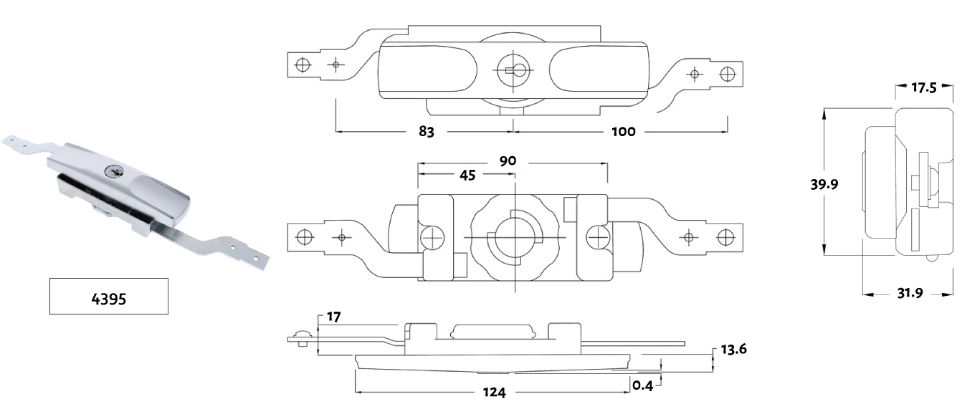

4395 SPECIFICATION SHEET
4395 PLATE SPECIFICATION SHEET
4395 INSTALLATION INSTRUCTIONS
- Can be supplied with or without barrel / cylinder
- Can be re-keyed without the removal of the main mechanism from the door
- Patented Cam Mechanism Design allows the lock to be changed from a free-latching mode into a deadlocking mode and vice versa
- Cam cannot be removed in the locked position
- Tamper proof screws supplied to enhance security in deadlocking mode
- Ergonomically designed internal operating knob offers a more positive grip
- Locking arms have a 19mm throw
- High quality satin chrome finish zinc alloy fascia
- High quality full metal locking mechanism
- Lock body has patented integrated mechanism protectors. These keep the door from applying pressure to the mechanism
- Slide arms are constructed from galvanised steel for increased strength and have threaded holes for the screws making installation easier

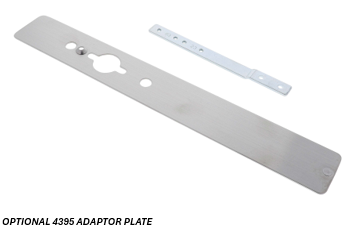

- Retrofits to existing market standards. When used in conjunction with a separate adaptor plate kit, can retrofit over larger fascia cut outs e.g 3323 and 3369
- Supplied with a rekeyable 001 C4 inner (Keyline LKW5 or Silca LW4) style cylinder which can accommodate certain restricted barrel systems
- Can be supplied with or without cylinder
- Cylinders can be re-keyed without the removal of the main mechanism from the door
- Simple changing of the back cam allows the lock to be changed from a freelatching mode into a deadlocking mode and vice versa
- Patented cam design prevents cam removal in the locked position
- Reverse C4 key required when product is configured for deadlocking mode allowing locking and unlocking from inside. C4 reverse keyblank is only supplied with KA or KD models
- Tamper proof screws supplied enhance security in deadlocking mode
- Supplied with tape to hold face plate on for easy installation
- Lock body designed for minimum protrusion
