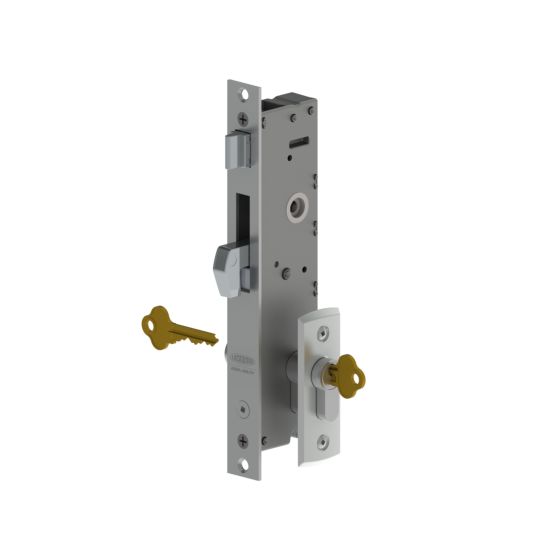

Lockwood Pinnacle Sliding Door Mortice Lock *ONLY* - 30mm BACKSET
*Accessories Sold Separately:
- Adjustable Strike With 3mm Packer - Part Number: PQ30656
- 3mm Strike Packer (Purchase Separately) - Part Number: PQ60417
- Fixed Cam Euro Key Cylinders i.e. 3162HSCKD
The Lockwood Pinnacle Sliding Door Mortice Lock has been developed with features designed to significantly improve functionality in sliding door applications. The lock features the unique security of a single hook bolt with an anti-lift feature between the lock and the strike.
Furniture Options: The Lockwood Aria D handle is recommended for use with Pinnacle Sliding Door Lock. Double cylinder, cylinder and turnknob, half cylinder or half turnknob options are available.
Keying: Compatible with 5 pin fixed cam Euro profile cylinders. Cylinders must be ordered separately.
Standard Finishes: Brushed stainless steel faceplate supplied

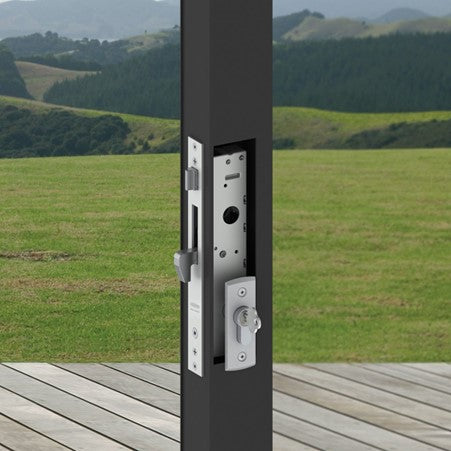

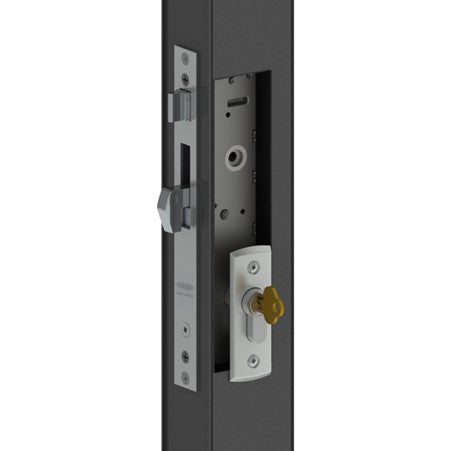

Suitability: Suitable for sliding door applications, which can be morticed to fit lock body
Fixing Surfaces: Aluminium
Features and Specifications
- Deadbolt locking
- Anti-lift design
- Anti-slam mechanism protects accidental damage to hook bolt when door is closed
- Adjustable strike
- Stainless steel faceplate
- Robust design
- Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience

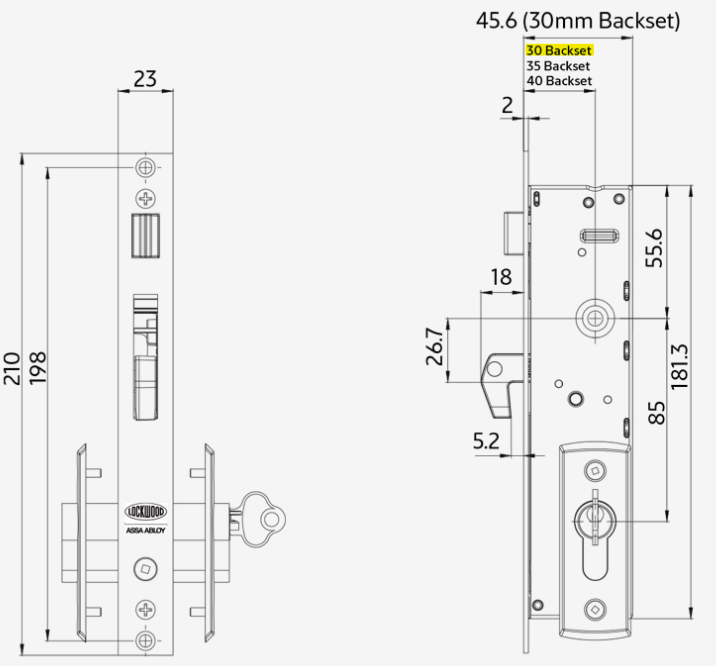

- Available in 30, 35 and 40mm backset variants*
- Door thickness: 32mm to 45mm
- Built to withstand a 4kN force entry load and 100,000 latching cycles
- Identical standard routing details to other Optimum Mortice Locks
- Available in 30, 35 and 40mm backset variants
- Door thickness: 32mm to 45mm
- Identical standard routing details to other Optimum Mortice Locks
*Please note: 35mm and 40mm backset variants are 12-14 working days lead time Made-to-Order (MTO) and non-returnable.
