LEGGE 5300 SERIES NARROW EXTERNAL PLATE FURNITURE

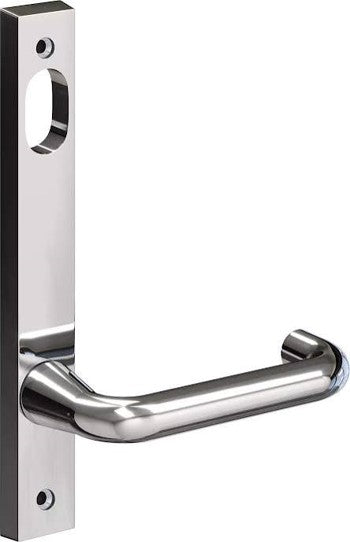

- L5301 - Cylinder Hole & Lever (external)
The 5300 Series narrow stile furniture (particularly 316G) has been designed for heavy duty commercial applications.
Allegion Commercial Guide
Materials:
- 5300 Series Material: Forged brass / Extruded brass plates
- 5300 316G Material: 316 Marine Grade Stainless Steel (SSS & MB finish only)

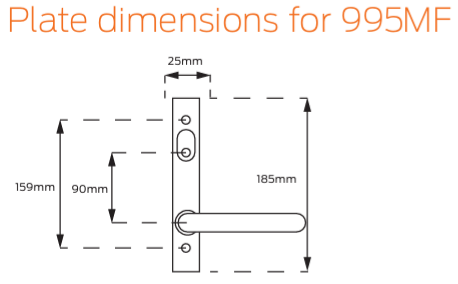

Plate dimensions:
- L185mm x W25mm x D12mm
Door thickness:
- 32mm - 55mm- 56mm - 75mm (use extended screws)
Features
- The heavy duty compression spring provides a smooth, fast return action of the lever and eliminates droop, extending the life of the furniture
- Symmetrically designed levers can be handed on site, with a simple 180° rotation of the lever prior to installation
- Designed for use with LEGGE 995MF (90mm Pitch - Lockwood 3782 compatible)
- The 30 year warranty provides specifiers and users peace of mind through assured quality and performance
- The Alpha lever is AS1428:1-2009 compliant

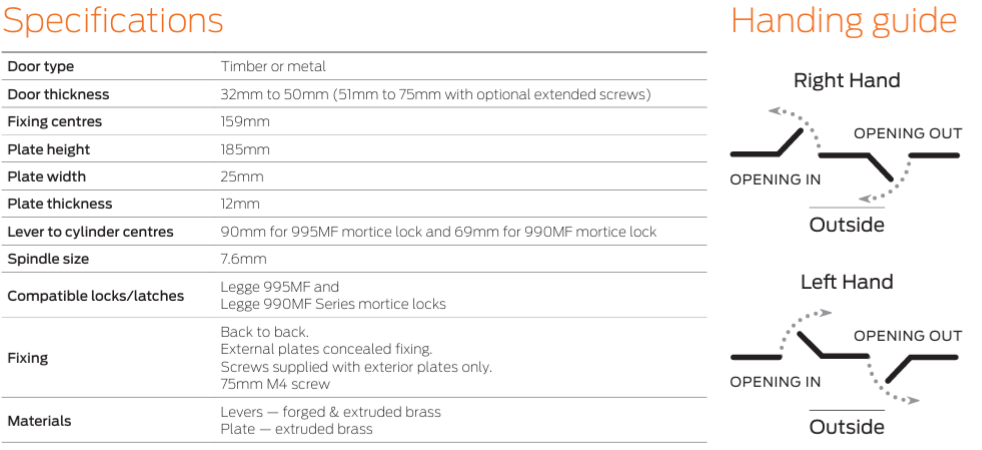

Handing: The handing mechanism of this Series allows the furniture to be handed on site, prior to installation by simply rotating the handle.
Testing and Compliance
Fire Rating: Successfully tested on fire door assemblies in accordance with AS1905 Part1: Fire resistance doorsets. Check with fire door manufacturer prior to installation.
Accessibility: Compliant to the AS 1428:1-2009 Design for Access and Mobility to the AS 1428:1-2009 Design for Access and Mobility.
