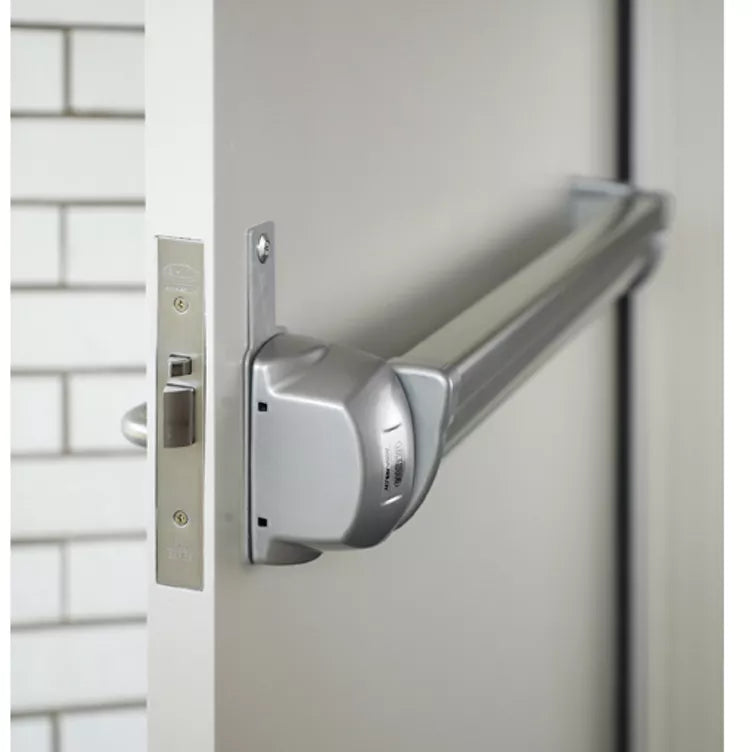

LOCKWOOD FLUID MORTICE LOCK SERIES PANIC EXIT DEVICE - SINGLE POINT

$1,247.50

Compare at $1,559.40

Size

Quantity

Lockwood FLUID Mortice Lock Series

The Lockwood FLUID Exit Mortice Lock series is engineered for the specific use with the Lockwood 3772 Selector MKII High Security Mortice Lock (sold separately) and 1800 Series brass door furniture (sold separately).

Operation

Inside: egress is always achieved by use of the FLUID Exit Panic Bar which will retract the latch bolt of the mortice lock.

Outside: entry by operation of lever handle.

Locking: Oval Cylinder to lock and unlock by turn of key. (Cylinder not supplied and must be ordered separately).

Standards and Compliance

Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Door sets.

Specifications

Handing

Field Reversible

Backset

Available in 60mm, 89mm and 127mm backsets

Door Thickness

Standard doors between 32mm and 50mm

Sizes

900mm and 1200mm options

Outside Lever Handle

Lockwood 1800/2800 Plate Furniture Series. Please select lever from lever selection guide. (Sold Separately)

Cylinder

Compatible with 570 Cylinder type and the ability to adapt to most master key systems. (Sold Separately)

Electro Mechanical Locking (optional by enquiry only)

Compatible for use with Lockwood 3572 ELM locking solutions where Electronic Access Control is nominated.

Description / Part Number

Warranty / Guarantee Lockwood 25YR Mechanical
