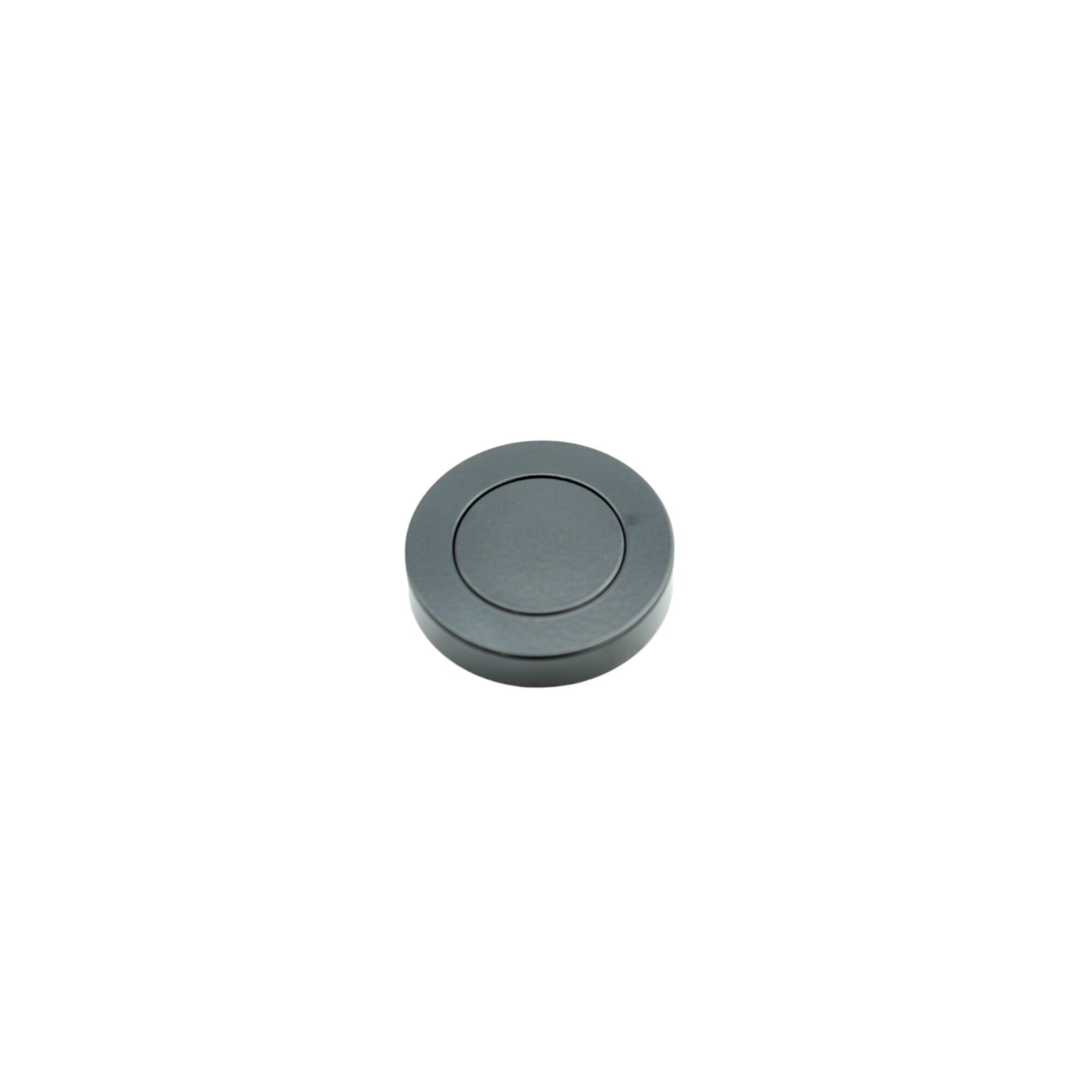

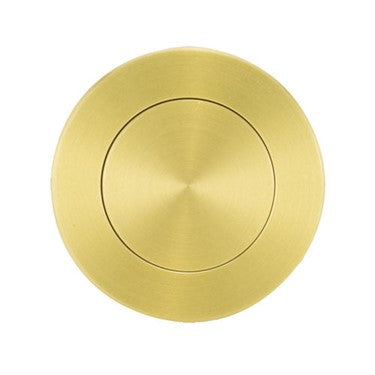

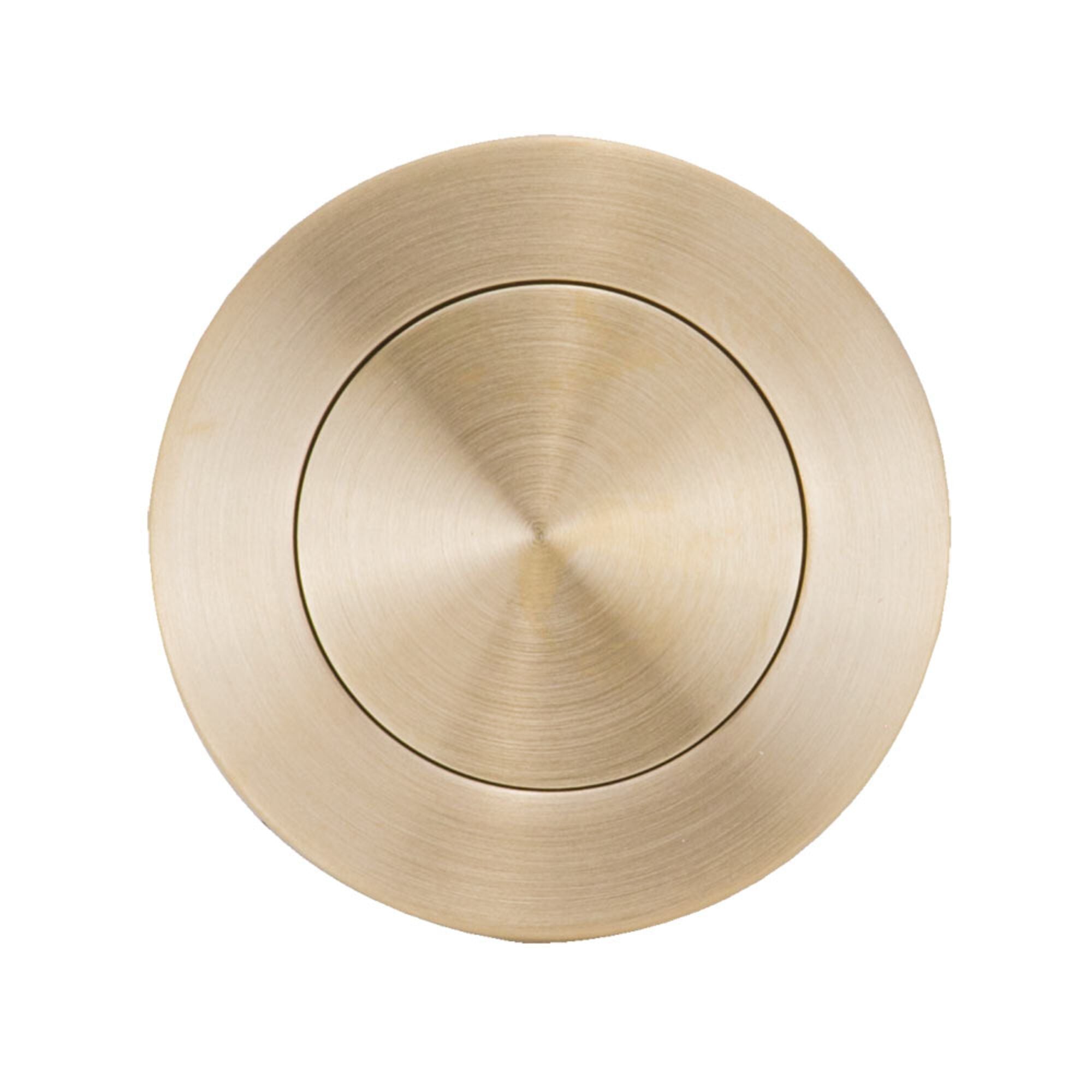

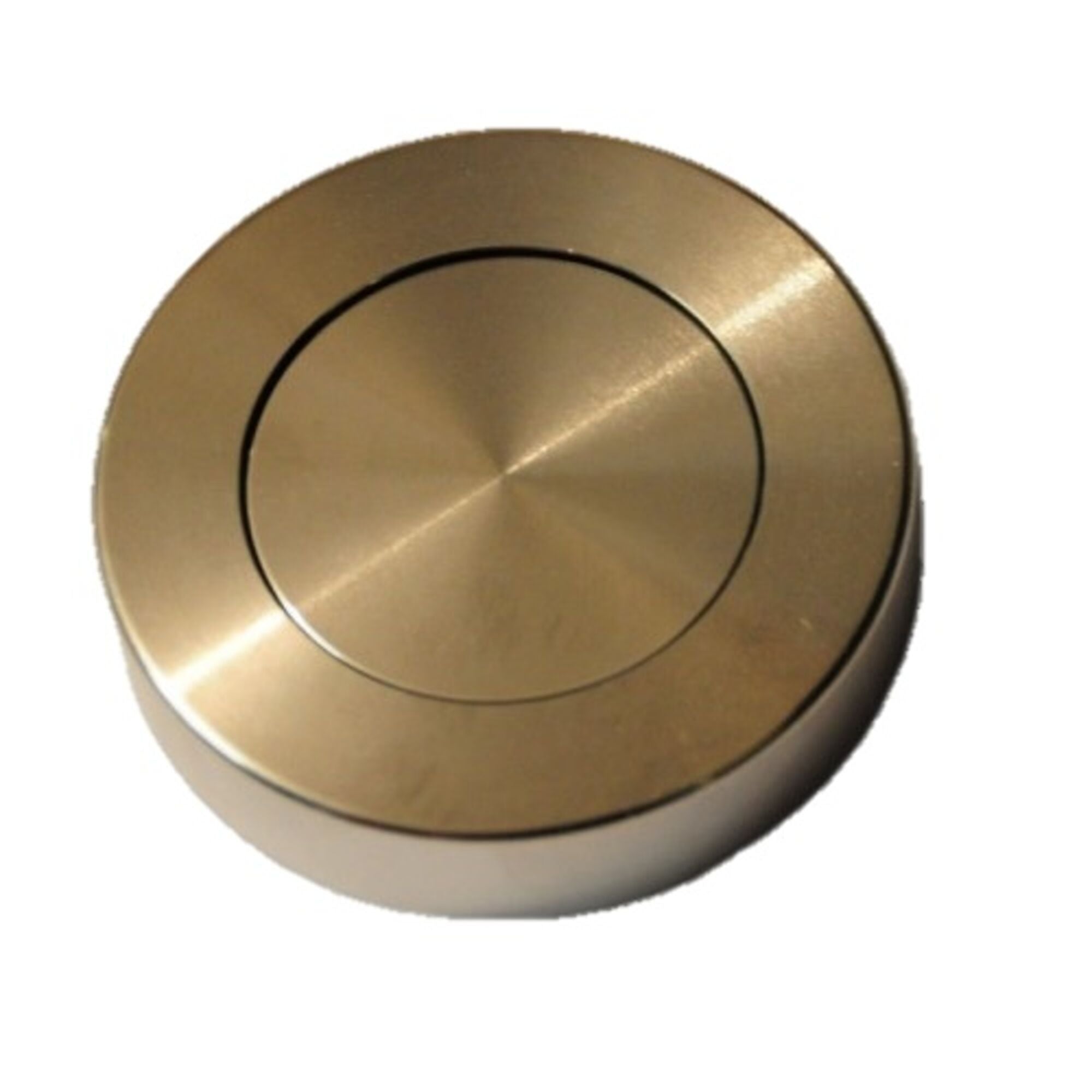

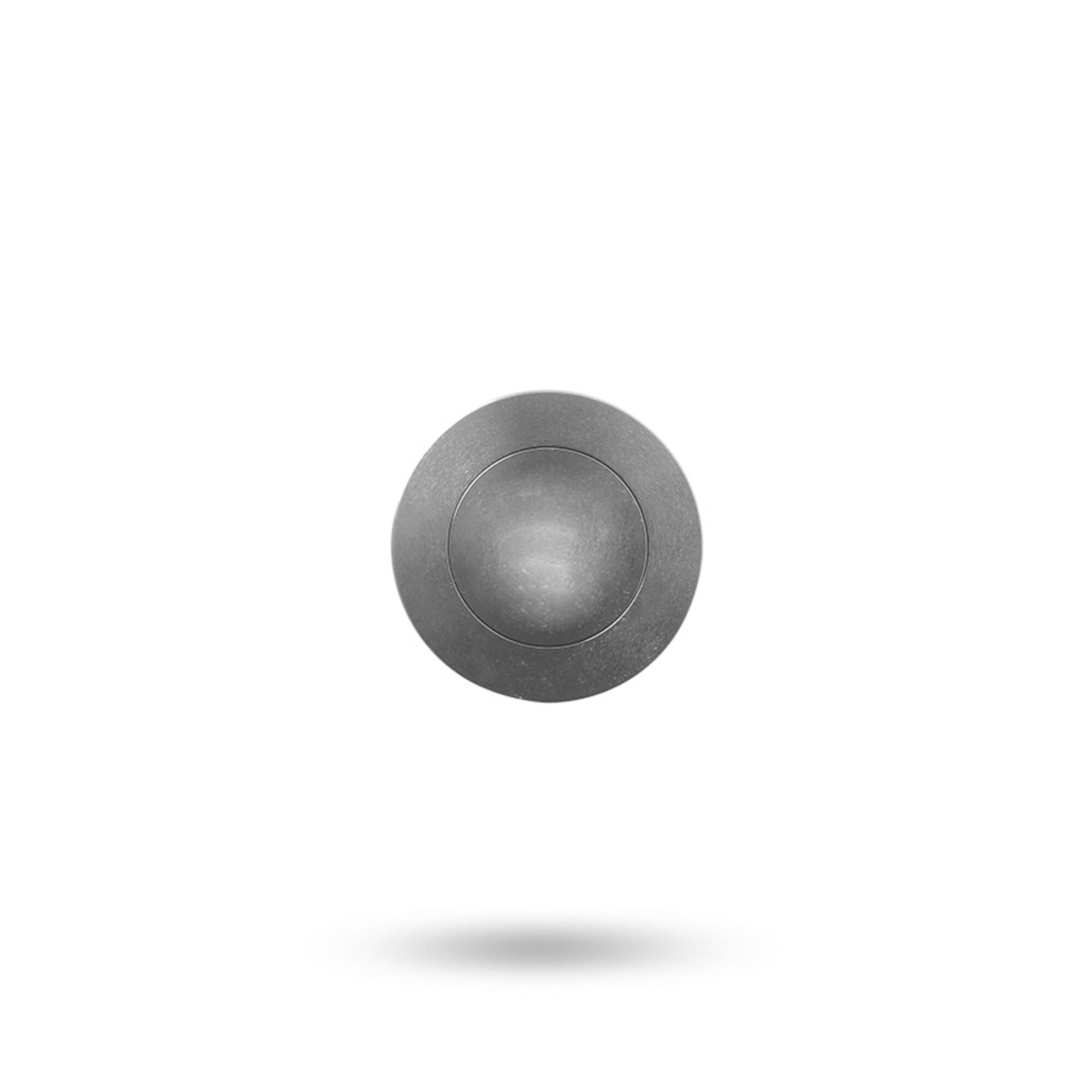

Simple and versatile, this elegantly styled round brass rose features concealed fixing.
The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.
Features of the 1220 Series Brass Rose Door Furniture
- A removable stop screw allows all symmetrically designed levers (eg. Cadenza) to be handed on site. Levers of asymmetrical design (eg, Veloce) cannot be reversed. Specify handing left or right hand when ordering.
- All Lockwood roses and levers contained in the 1220 series are of a solid brass construction.
- Designed for use with Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches and with5260 Tubular Latches.

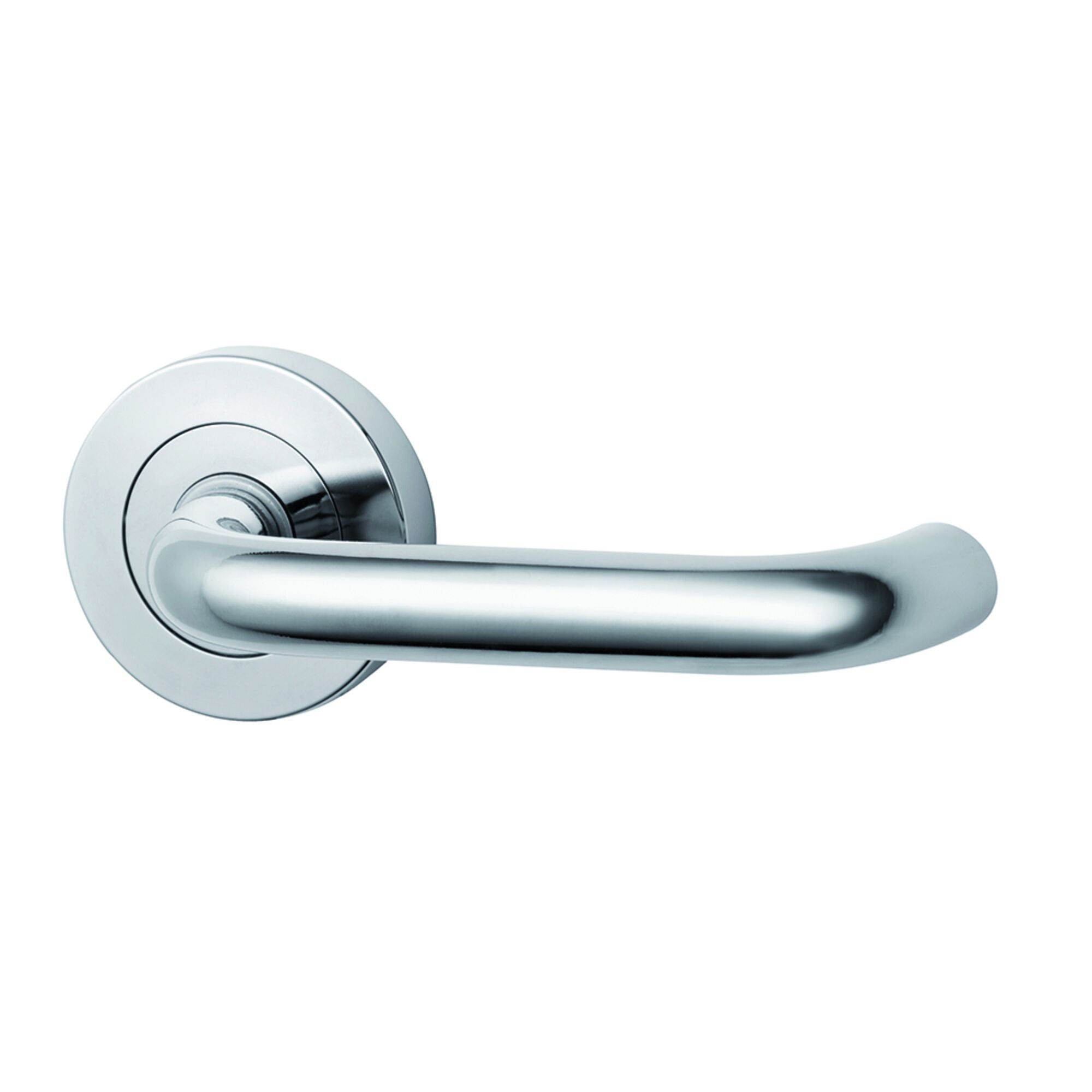

Lever 70 dimensions:
- Length: 121mm
- Projection: 53mm
- Finger clearance: 37mm
AS1428.1 Compliant
Rose Dimensions
Handing
A removable stop screw allows all symmetrically designed levers (e.g. Cadenza) to be handed on site. Levers of asymmetrical design (e.g. Veloce) cannot be reversed. Specify left or right handed when ordering.
Materials
All Lockwood roses and levers contained in the 1220 series are of solid brass construction.
Fixing
Fully concealed on both sides.
Door Thickness
33mm minimum for 5260 Latches and 32mm minimum for Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches. Maximum door thickness 50mm.

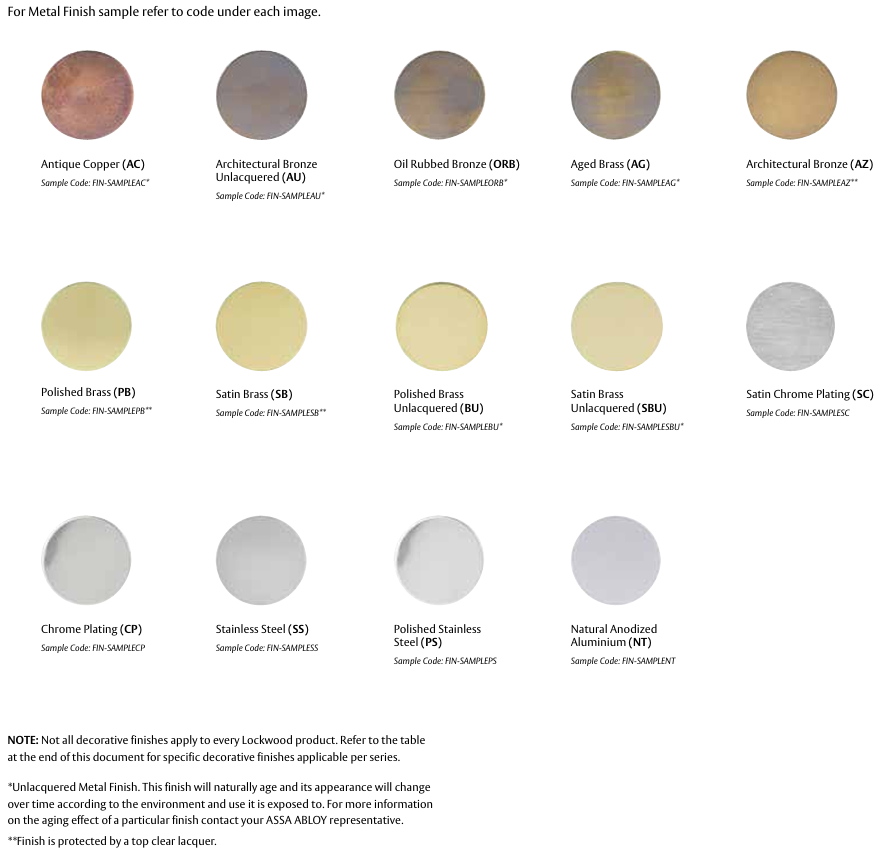

Finishes
Standard
- Satin Chrome Brushed - SC
Non Standard
- Architectural Bronze - AZ
- Architectural Bronze Unlacquered - AU
- Antique Copper - AC
- Aged Brass - AG
- Chrome Plate - CP
- Oil Rubbed Bronze - ORB
- Polished Brass - PB
- Polished Brass Unlacquered - BU
- Polyester Powdercoat - PC
- Satin Brass - SB
- Satin Brass Unlacquered - SBU
Disclaimer: Product Colours displayed in this catalogue have been matched to indoor viewing and colour appearance may vary according to light source and medium and as such should be used as indicative only. As actual colour on the end product may vary, always confirm your colour choice with viewed/purchased samples. For warranty terms and conditions on Lockwood Products and its finishes, please visit www.lockweb.com.au or call 1300WARRANTY
