Description

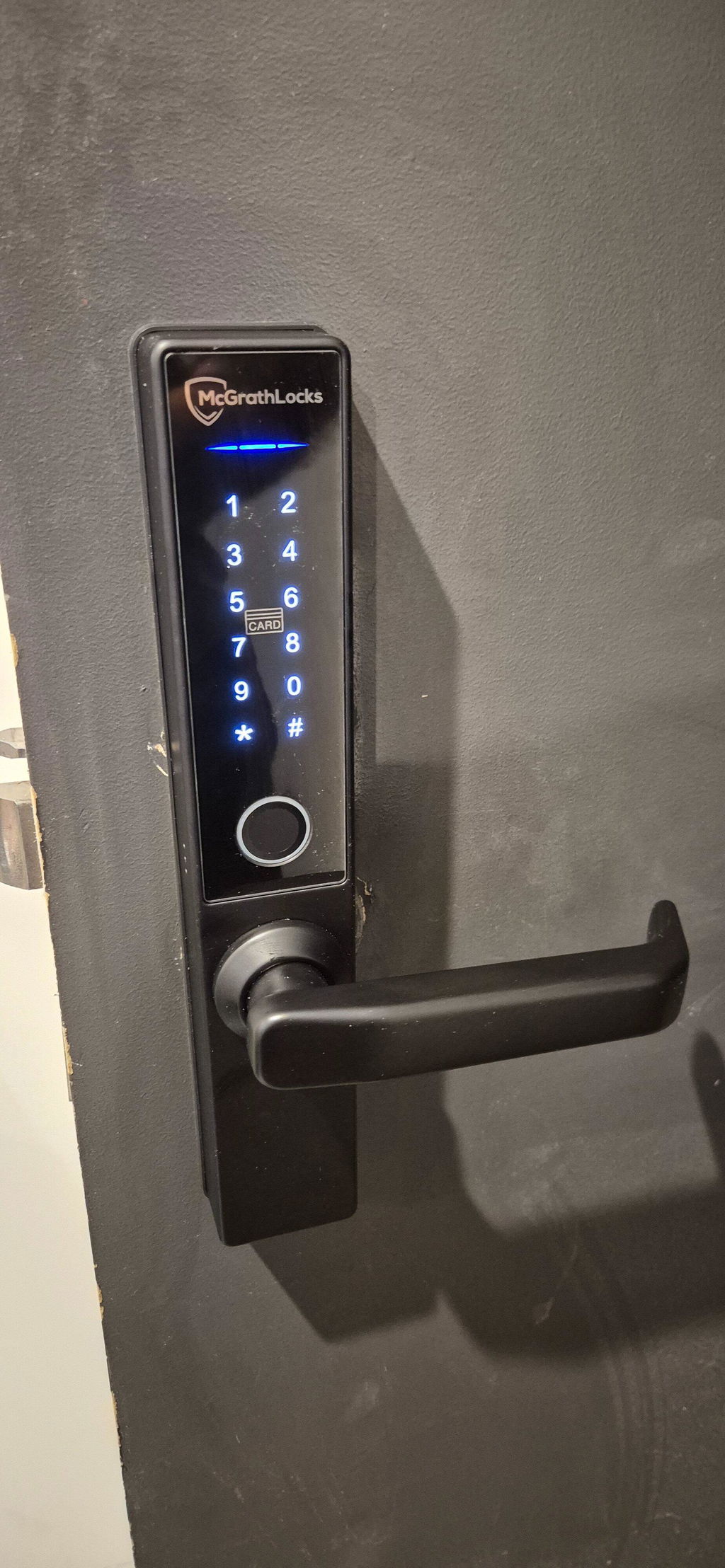

The HAMILTON by McGrath Locks is a sleek and stylish lock designed for the Australian market. A great addition to the home, office or business, this 5 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.
Utilising the powerful TTLock App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the HAMILTON from anywhere in the world using the TTLock App.
The HAMILTON is designed with many features for the most demanding applications. It is supplied with an adjustable tubular latch and is also compatible with the most common Australian commercial mortice locks. The lock is fire rated up to 2 hours on E-Core and Firecore doors when installed with the McGrath Locks Tubular Latch (sold separately) or with a Dormakaba MS2602 mortice lock (sold separately). The HAMILTON also has a DDA compliant lever design.
- Lock functions and access easily managed via TTLock App.
- Enrol Pin Codes, RFID credentials, Fingerprints and send eKeys to your family and visitors.
- Passage Mode can be used to leave your door open when required.
- Anti peep code function stops unathorised people seeing the correct code inputted.
- Incorrect attempt lockout.
- Privacy lock function can be set in App so only the administrator can access the lock.
- Reset button can be disabled in App for additional security.
- Audit trail within App to see who accessed your door and when.
- Supplied with door sensor for optional door monitoring.
- Low battery alert (within App and audible at the lock).
- 4 x AA Alkaline Batteries (not included).
- Mechanical key override, accepts full size 570 oval cylinder.
- USB-C emergency opening.
- Tempered Glass Screen for extra durability.
- Field changeable handing.
- DDA compliant lever design to satifsy BCA AS1428.1 -2009.
- 2 hour fire rating for E-Core and Firecore doors when fitted with approved latch / lock.
- Compatible with most common Australian mortice locks.
- Suits door thickness 35-54 mm.
- IP66 on external lock housing.
- Lock case dimensions 260 (H) x 45 (W) x 23 mm (D).
- Finished in Satin Nickel or Black
Technical Specifications
|
Brand
|
McGrath Locks
|
|
AS1428.1 Compliant Lever (AS1428.1CO)
|
Yes
|
|
Finish
|
Satin Nickel / Black
|
|
IP Rating
|
IP66
|
|
Fire Rated
|
Yes
|
|
Biometric Fingerprint Access
|
Yes
|
|
Suits
|
Standard Stile Doors
|
|
Assembly Form
|
Less Latch/Mortice Lock
|
|
Compatible with Australian Mortice Locks
|
Yes
|
