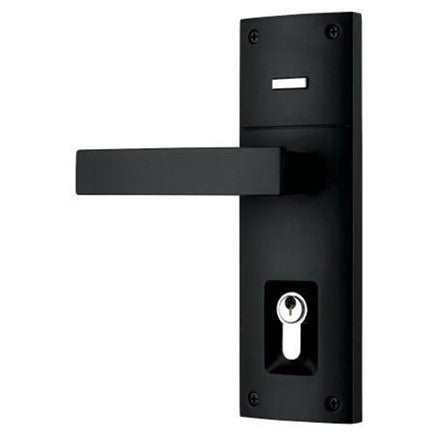

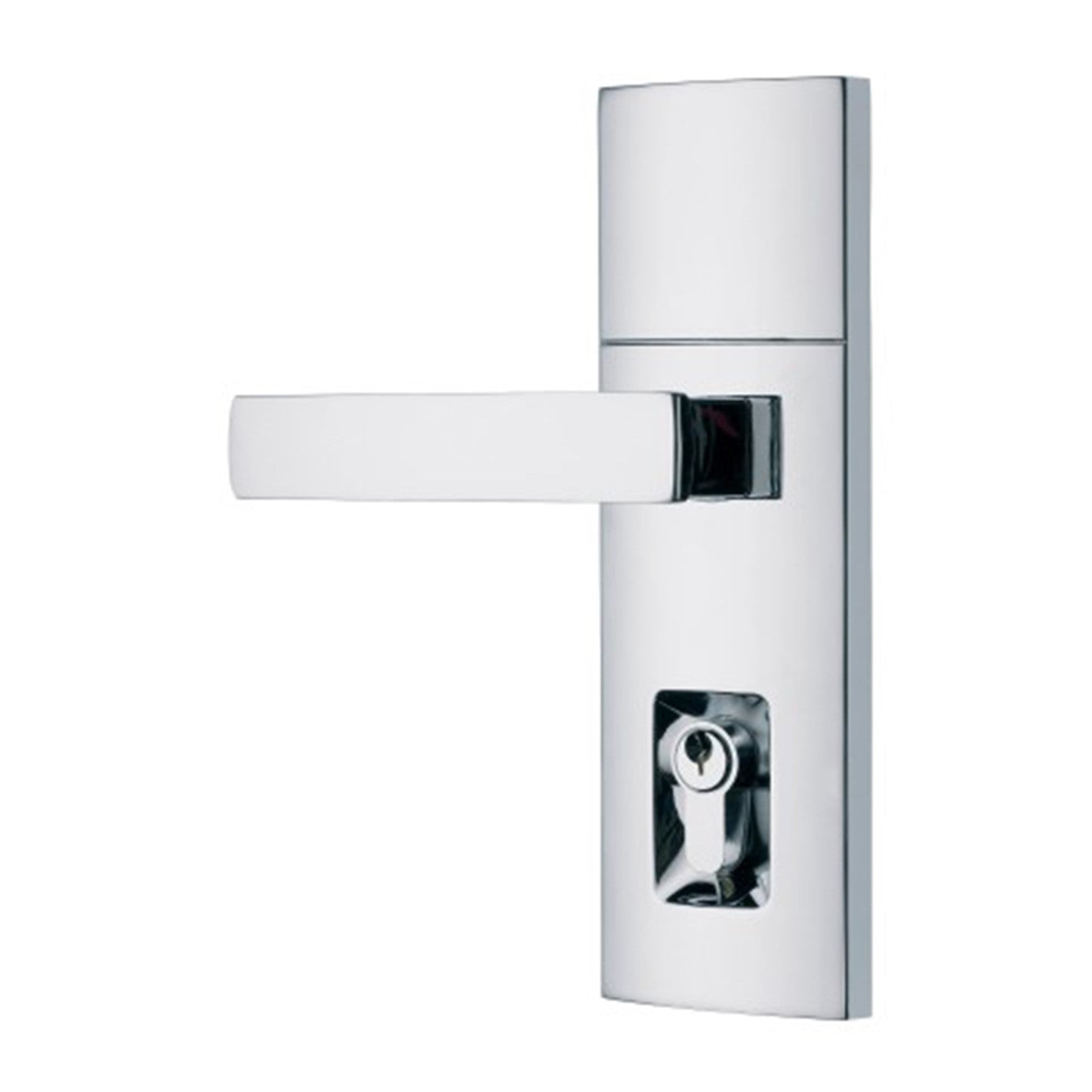

Entrance Set (Locking) - 8901ANG**
MB - Matt Black | SC - Satin Chrome | BC - Bright Chrome
The Angular lever, with its modern, geometric design is well suited to a range of architecture and entrance styles. It is available in three finishes, 199mm length, and a 60mm backset. The lock features Gainsborough signature 3-in-1 locking in one combined lockset, providing privacy, passage, and a deadbolt function.
- Collection: Trilock Contemporary Series
- Function: Entrance
- Locking/Non-Locking: Locking
- Bore hole (mm): 54
- Door thickness (mm): 35-45
-
Warranty: 5 Year Tarnish Warranty, 10 Year Mechanical Warranty
Installation:
Templates are not to scale unless printed that way. Always check sizing before use.
Template for Trilock Contemporary and Traditional Entrance Sets.
Installation Instructions for Trilock Contemporary Entrance Sets.
Click HERE for step by step videos for installation.

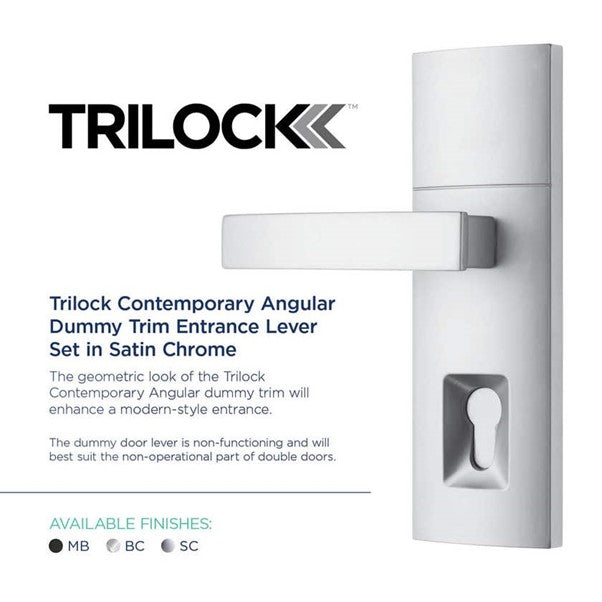

Dummy Trim - 8201ANG**
MB - Matt Black | SC - Satin Chrome | BC - Bright Chrome
Includes inside and outside escutcheons and levers. No keyed cylinder. Suitable for non-locking leaf of double doors.

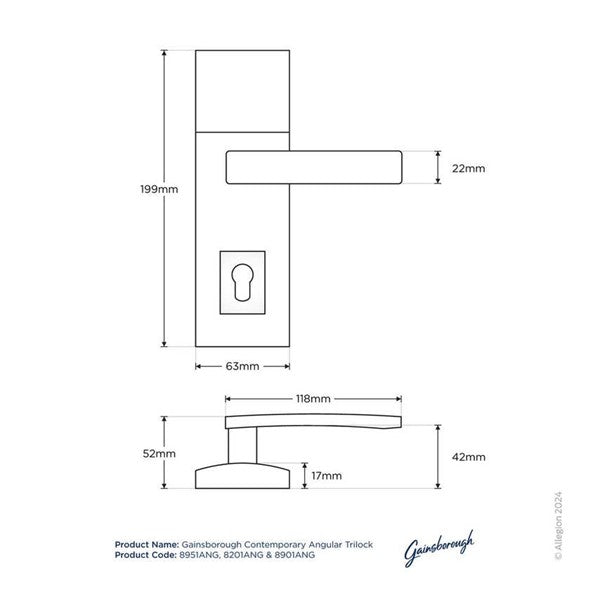

Back Plate: 199mm x 63mm
Projection: 52mm
Installation Template:
Templates are not to scale unless printed that way. Always check sizing before use.
Template for Trilock Contemporary and Traditional Dummy Trim Set.
